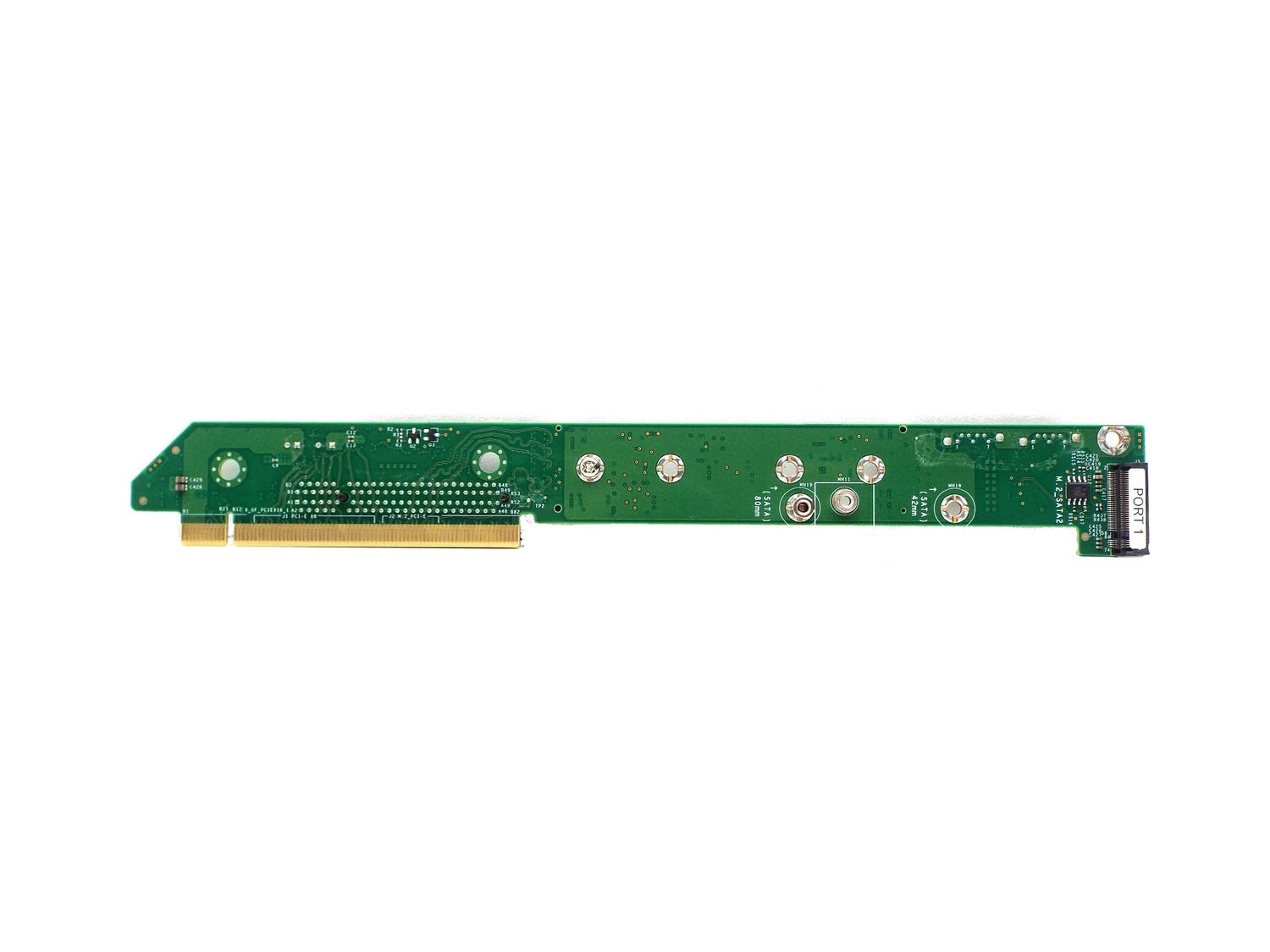

SUPERMICRO RSC-UMR-8 1U ULTRA RHS PCIe x8 & HYBRID M.2 RISER CARD TESTED WORKING
Product Details
The Supermicro RSC-UMR-8 is a genuine right-hand-side riser card designed for select Supermicro Ultra-series rackmount servers. Its space-saving design provides one low-profile PCI Express 3.0 x8 expansion slot and one hybrid M.2 storage connection within a compact 1U server configuration. The hybrid M.2 connection supports either a compatible PCIe NVMe or SATA M.2 solid state drive, depending on the server configuration, motherboard support and installed cabling. This allows compatible systems to add internal solid state storage while retaining a PCIe x8 slot for a network adapter, storage controller or another supported low-profile expansion card.
KEY FEATURES:
Genuine Supermicro server component
Designed for select Supermicro Ultra-series systems
Right-hand-side, Slot 1 installation
One low-profile PCIe 3.0 x8 expansion slot
One hybrid M.2 storage connection
Supports compatible M.2 PCIe NVMe or SATA SSDs
Compact riser design for space-restricted server installations
Suitable for network, storage and other low-profile PCIe expansion cards
Passive design requiring no separate power supply
SPECIFICATIONS
Brand: Supermicro
Part Number: RSC-UMR-8
Product Type: Server Riser Card
Series: Ultra
Form Factor: 1U
Installation Position: Right-Hand Side
Slot Position: Slot 1
PCIe Interface: PCI Express 3.0
Expansion Slot: 1× Low-Profile PCIe 3.0 x8
Storage Connection: 1× Hybrid M.2
Supported M.2 Interface: PCIe NVMe or SATA
Component Type: Passive Riser/Storage Adapter Card
Compatible Systems: Select Supermicro 1U and 2U Ultra servers
KNOWN COMPATIBLE SYSTEMS
Compatibility includes select configurations of:
Supermicro SYS-1029U-TN10RT
Supermicro SYS-1029U-TRT
Supermicro SYS-1029UZ-TN20R25M
Supermicro SYS-2029U-TN24R4T
Supermicro SYS-2029UZ-TN20R25M
Supermicro SYS-6019U-TN4R4T
Supermicro SYS-6019U-TN4RT
CONDITION - USED AND TESTED
Used item in good cosmetic condition. This riser card was tested and verified to function properly. Minor cosmetic wear may be present from previous installation or storage. No M.2 SSD, expansion card, cable or mounting hardware is included unless specifically shown in the photographs.
