STERIS QSK2466-24 PANEL-MOUNT THERMAL MEDICAL EQUIPMENT PRINTER RS-232

SKU 2299
$365.00
Compact 24V serial printer for compatable steris medical equipment.
In stock: 1 available
1
Save this product for later
Share this product with your friends
STERIS QSK2466-24 PANEL-MOUNT THERMAL MEDICAL EQUIPMENT PRINTER RS-232
Product Details

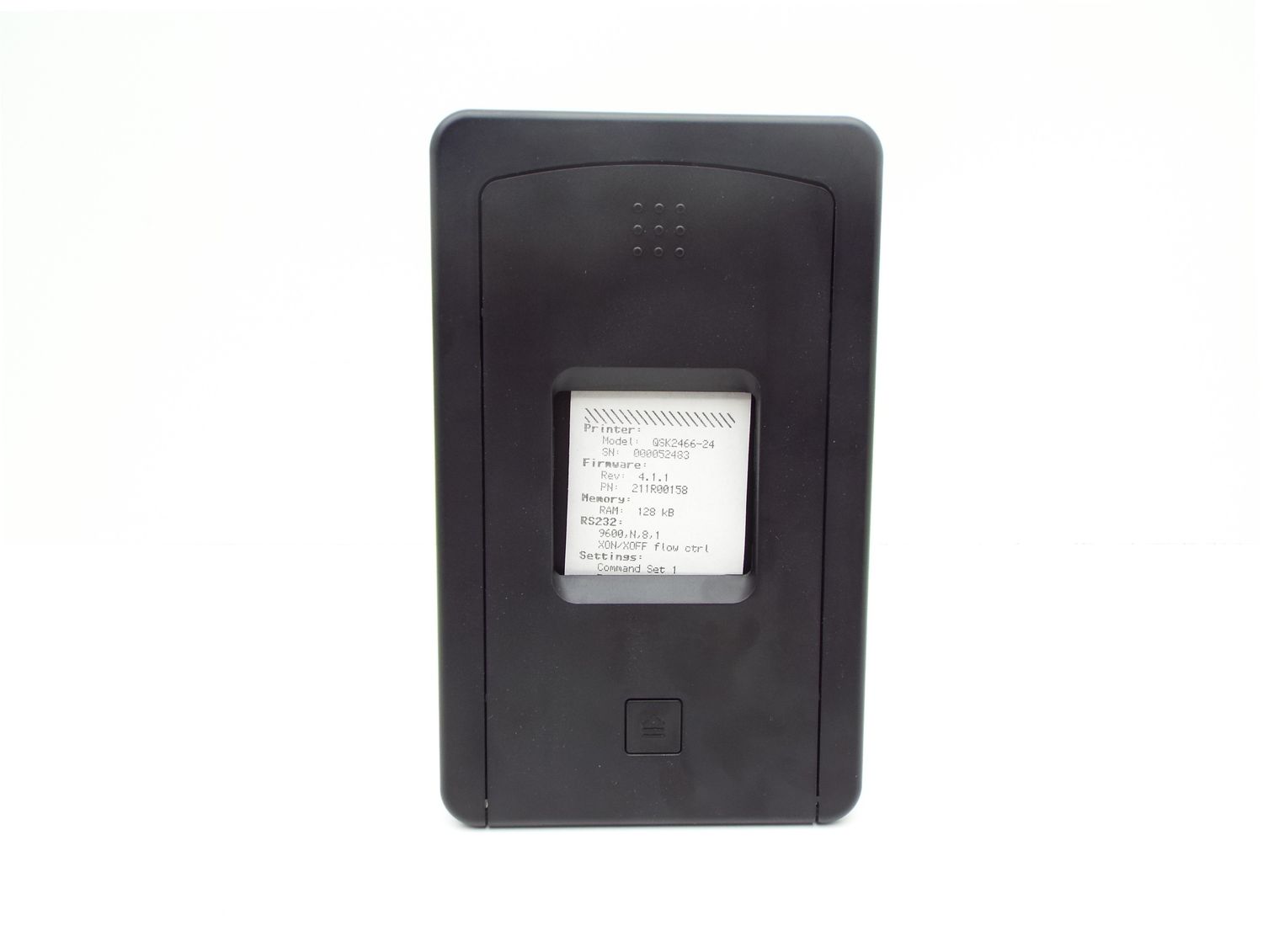

STERIS QSK2466-24 panel-mount thermal printer designed to produce equipment records, cycle information, status reports, and other documentation from compatible STERIS medical or sterilization systems. This compact printer uses direct thermal paper, eliminating the need for ink or toner. It connects through an RS-232 serial interface and supports multiple selectable baud rates and communication settings. Its integrated enclosure includes an easy-access paper compartment and front paper feed control. The printer was powered on and successfully produced the configuration printout shown, confirming basic printing and paper-feed operation. Exterior surfaces show normal cosmetic wear, including light scratches, marks, and possible tape residue. This is a specialized equipment printer, not a standard USB or network receipt printer. Compatibility should be verified using model QSK2466-24 before purchasing.


SPECIFICATIONS:
Brand: STERIS
Manufacturer: OMNIPrint
Model: QSK2466-24
Serial Number: 000052483
Product Type: Panel-Mount Medical Equipment Printer
Printing Technology: Direct Thermal
Print Color: Monochrome
Memory: 128 KB RAM
Interface: RS-232 Serial
Supported Baud Rates: 4,800, 9,600, 19,200 and 115,200
Data Configuration: Selectable 7-bit or 8-bit
Flow Control: DTR or XON/XOFF
Parity Settings: None, odd or even
Command Set: Command Set 1
Fonts: Selectable Font A or Font B
Power Requirement: 24V DC, 1.5A
Controls: Front paper feed button
Country of Manufacture: United States
Compliance: CE marked
Intended Use: Printing equipment records and cycle data from compatible STERIS medical or sterilization systems
Included: Printer only as pictured
Power Supply/Data Cable: Not shown; do not include unless you physically have them


USED AND TESTED IN WORKING CONDITION. The printer powers on, feeds paper, and successfully prints a self test/configuration report, as shown in the photos. Full communication with a STERIS system was not tested. The unit shows normal cosmetic wear from previous use, including light scratches, scuffs, and marks. Includes only the printer and components pictured.
