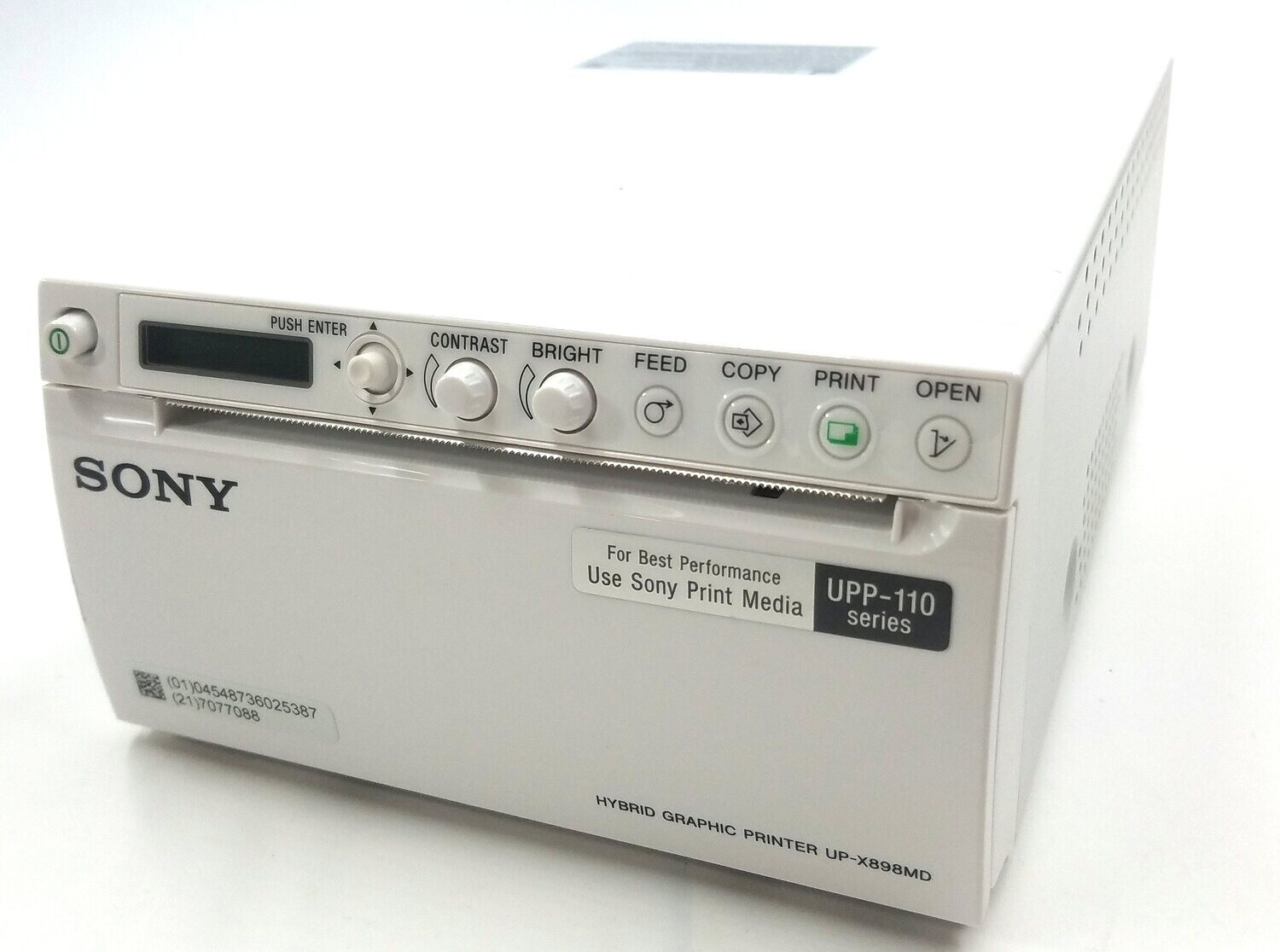

User-friendly controls on front panel

Compact, space-saving design

High resolution of 325 DPI

High speed printing of approximately 1.9 seconds

USB 2.0 Interface

Utilizes existing 110 Series media by Sony UPP-110S/5, UPP-110HD, UPP-110HG

Roller cleaning sheet 4-535-333-01 recommended when the printout is dirty or white stripes appear on the printouts (reference UPD898MD Operation Manual, page 24)

Printing Method: Direct thermal printing

Resolution: 325 dpi

Gradations: 8 bits (256 levels) processing

Picture Elements Digital: 4,096 x 1,280 dots

Picture Area: 320 x 100 mm (12 5/8 x 4 inches)

Paper Size: Paper width of 110 mm (4 3/8 inches)

Printing Time:

High-speed mode: Approx. 1.9 seconds/image (960 x 1,280 dots)

Normal speed mode: Approx. 3.3 seconds/image (960 x 1,280 dots)

Picture Memory Digital: 4,096 x 1,280 x 8 (bit)

Interface: Hi-Speed USB (USB 2.0) (x1)

Printer Driver Software: Microsoft Windows 7 32/64 bit, 8 32/64 bit, 10 32/64 bit

Power Requirements: AC 100 V to 240 V, 50/60 Hz

Input Current1.3 A to 0.6 A

Operating Temperature: 5°C to 40°C (41°F to 104°F)

Operating Humidity: 20% to 80% (no condensation allowed)

Storage and Transport Temperature: -20°C to +60°C (-4°F to +140°F)

Storage and Transport Humidity: 20% to 80% (no condensation allowed)

Dimensions (W x H x D)154 x 88 x 240 mm (6 1/6 x 3 1/2 x 9 1/2 inches)

Mass2.5 kg (5 lb 8 oz)

EC Directive(EU) MDD, EMC, LVD

Includes: Printer, USB-B Connection cable, 3 X Thermal Paper (complimentary), Power Cable
