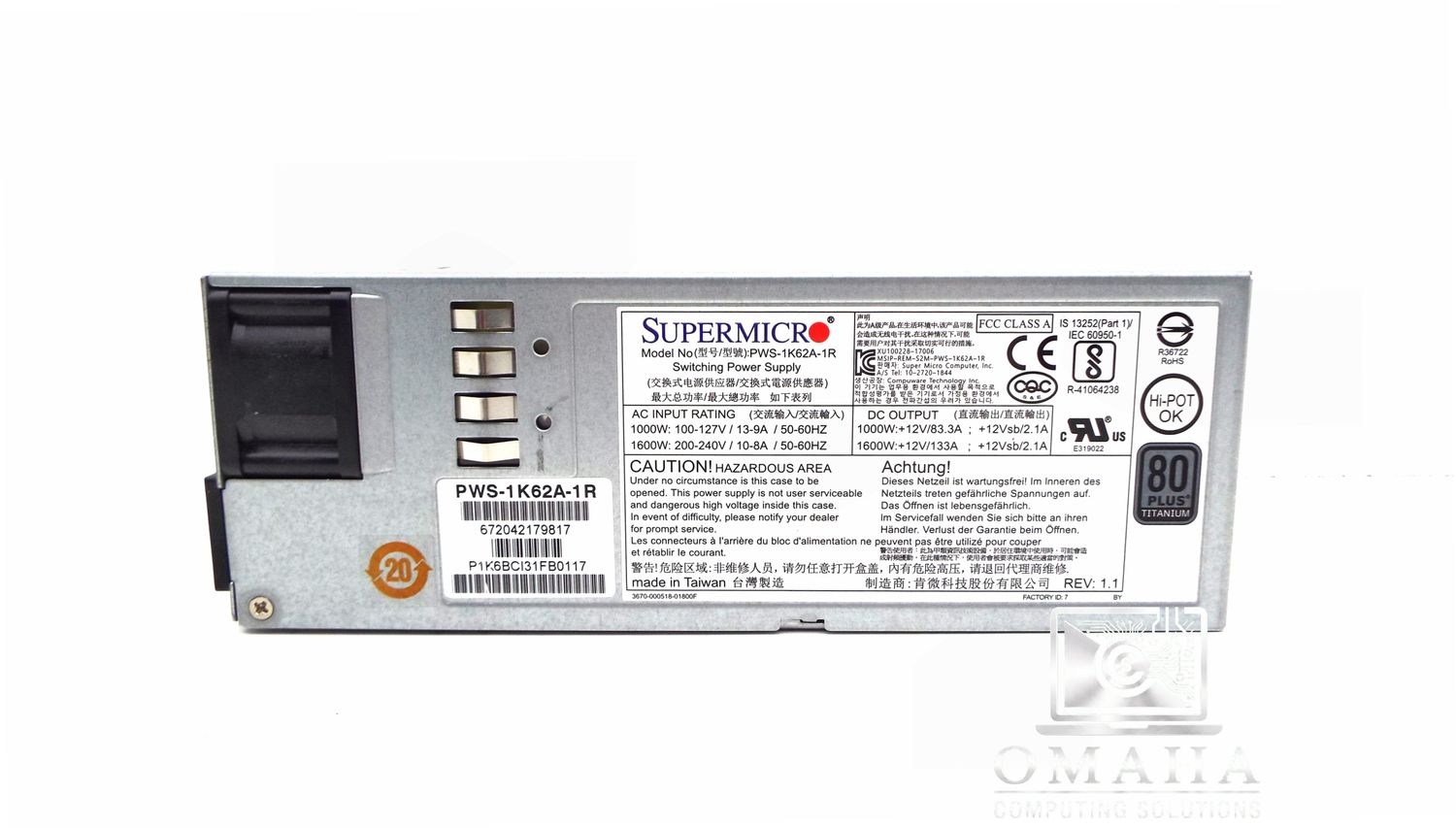

SUPERMICRO PWS-1K62A-1R 1000W/1600W 1U REDUNDANT HOT-SWAP SERVER PSU TESTED WORKING
Product Details
The Supermicro PWS-1K62A-1R is a high-output redundant power-supply module designed for compatible Supermicro server systems. It supplies up to 1000 watts when connected to 100–127V AC power and up to 1600 watts when connected to 200–240V AC power.
Its hot-swappable design allows the module to be replaced without shutting down a compatible server operating in a redundant configuration. The 80 PLUS Titanium efficiency rating helps reduce power consumption and heat generation in continuously operating server and data-center environments.
PMBus 1.2 support allows compatible server-management hardware to monitor power-supply status and operating conditions. Integrated protection circuitry helps protect connected equipment against overvoltage, overcurrent, short circuits, overtemperature and input undervoltage.
Brand: Supermicro
Manufacturer: Super Micro Computer, Inc.
Model: PWS-1K62A-1R
Product Type: Redundant Server Power Supply Module
Form Factor: 1U
Power-Supply Design: Hot-Swappable Redundant Module
Redundancy Support: N+1 in compatible systems
Output at 100–127V AC: 1000W
Output at 200–240V AC: 1600W
Input Voltage: 100–127V AC / 200–240V AC
Input Frequency: 50–60Hz
Input Current: 13–9A / 10–8A
Main DC Output: +12V
+12V Output at 1000W: 83.3A
+12V Output at 1600W: 133A
Standby Output: +12VSB, 2.1A
Efficiency Certification: 80 PLUS Titanium
Typical Efficiency: 96%+ at 230V AC
Power Factor: Approximately 99% typical
Management Interface: PMBus 1.2
FRU Data Support: Yes
Output Connection: Gold-finger card-edge connector
Cooling: Integrated cooling fan
Dimensions: 73.5 × 203 × 40 mm
Approximate Dimensions: 2.89 × 7.99 × 1.57 inches
MTBF: Greater than 200,000 hours at 25°C
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: Up to 85%, non-condensing
Manufacturer Revision Shown: Rev. 1.1
Excellent Condition / Clean Pull. This power supply was pulled from a clean, temperature controlled environment. It has been fully benchmarked, tested, and is 100% working. Cosmetically, it looks like new with no major scratches, dents, or signs of wear. Guaranteed working upon arrival. Ships quickly in secure anti static packaging.
